Source to outcome predictor

The Source To Outcome Predictor (STOP) is a Graphical User Interphase (GUI) developed by NIVAs Computational Toxicology Program (NCTP) as a front-end tool for NIVA Risk Assessment database.

The STOP-GUI facilitates rapid and consistent visualizations of exposure, hazard and risk assessment of single chemical and non-chemical stressors and combinations (mixtures) of these. The NIVA RAdb and STOP-GUI utilize the Source To Outcome Pathway (STOP) framework to compile, assemble, integrate and visualize case (campaigne)-specific exposure data, spatial and temporal risk predictions, susceptible species, identification of risk drivers (most toxic stressors) and most relevant modes of action (MoAs).

Background

Use of available exposure and effect data are key to performing hazard and risk assessment of chemicals and non-chemical stressors, and compiling different sources of data are often done in a case-by-case manner. Processing data is thus highly cumbersome and time-consuming, whereas the availability of data is a large source of uncertainty in resulting assessments. The STOP-GUI has been developed as a front-end visualization tool for data available in and analysed within the NIVA Risk Assessment database (NIVA RAdb) tool. The STOP-GUI currently facilitates visualization of exposure, effect and risk predictions for different case studies where input of modelled and/or measured exposures are used to predict the exceedance of safe response thresholds for specific molecular, cellular and/or functional responses as well as for adverse effects relevant for regulatory processes. The STOP is informed by data organisation principles such as the Aggregate Exposure Pathway (AEP) and Adverse Outcome Pathway (AOP) to ensure consistent handling of relevant data for research and next generation (NextGen) risk assessment.

Figure explaining the approach pipeline
Applications of the Source To Outcome Predictor graphical user interphase (GUI) for identifying risk at a spatio-temporal scale (spatial and temporal risk), susceptible species and taxa (species groups), risk drivers (stressors representing the largest risk) and mode of action being relevant for one or more stressors (multiple stressors).The predictions are made upon modelled or measured data for individual stressor(s) and the cumulative effect of all stressors are predicted using the principle of concentration (dose/dose rate) addition. The predictions along the Source To Outcome Pathway (STOP) is anticipated to support identifying the most relevant exposure scenarios, potential effects of mitigation actions, prospective risk assessment (e.g. climate change predictions) and inform Aggregate Exposure Pathway (AEP) and Adverse Outcome Pathway (AOP) developments for chemical and non-chemical stressors.

Graphical user interface

The Graphical User Interphase (GUI) is build as a Shiny App and run from a LINUX server hosted by NIVA. The GUI is currently a stand-alone application that uses flat file data extracts from NIVA RAdb, but its envisioned to directly interact with NIVA RAdb in the future. The GUI is currently tested with several internal and external case-study owners to improve functionality and ensure a broad user community applicability.

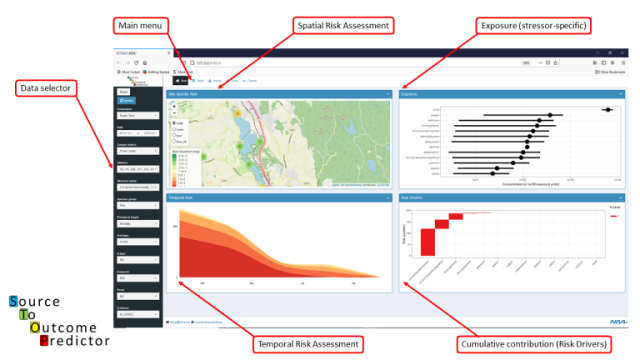

The GUI for STOP
Overview of the graphical user interphase for the Source To Outcome Predictor (STOP-GUI) and some of the functionality supported
